LEAF SPRING Original Markings -- RS-105B

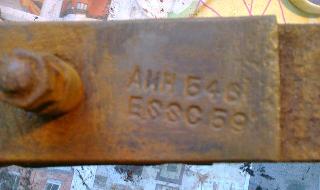

Original leaf springs were stamped with the manufacturer's name and the BMC part number. Thanks to Jim Stout and Thomas Storey for these pictures.
leaf spring name and number leaf spring name and number

On 7/14/2016, Jim Cheatham wrote:
"While cleaning up the leaf springs I will be using on my car, I also found the letter 'P' embossed on a couple of the leaves. It was not on all of them, only two out of the 14 pieces have it. I wonder if you have seen this mark before and what it means"?
leaf spring name and number
Until shown otherwise, I will guess this is a manufacturer's mark from the steel mill that produced long lengths of the spring steel strip stock. The raised letter would be formed as part of the hot rolling process, appearing periodically along the length of the extended length strip stock. When the strip was later sheared to various lengths for the spring leafs, this mark would likely appear in random location along the length of some of the leafs. Frequency of appearance of this mark would depend on how far apart the marks were on the original long lengths from the steel mill.

Since this mark was found in only 2 places on 2 springs, and about 80% of the leaf surfaces would be hidden from view, it is likely this mark might be visible somewhere in assembly only once on every 5th spring (on average). It might also differ if the spring stock came from a different mill. While this is an interesting point of curiosity, it would not be a good feature for concours judging.
