STORAGE SPACE Under Battery Cover #2 - AT-209A
Additional MGA Storage

On Dec 28, 2025, Thomas Schuster from Dresden, Germany wrote:

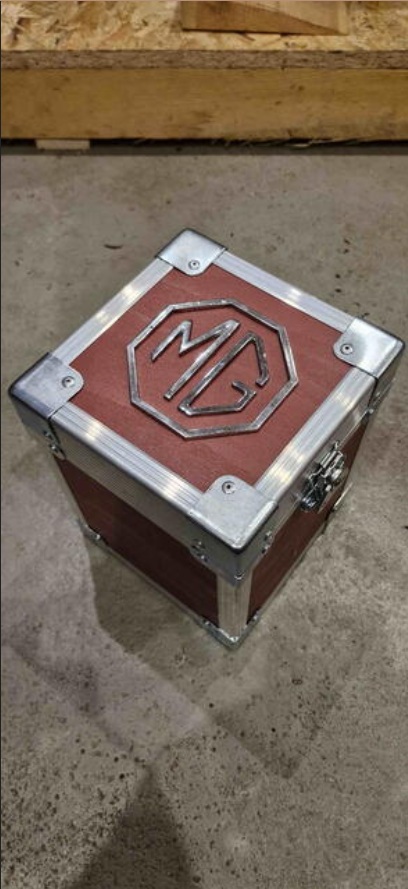

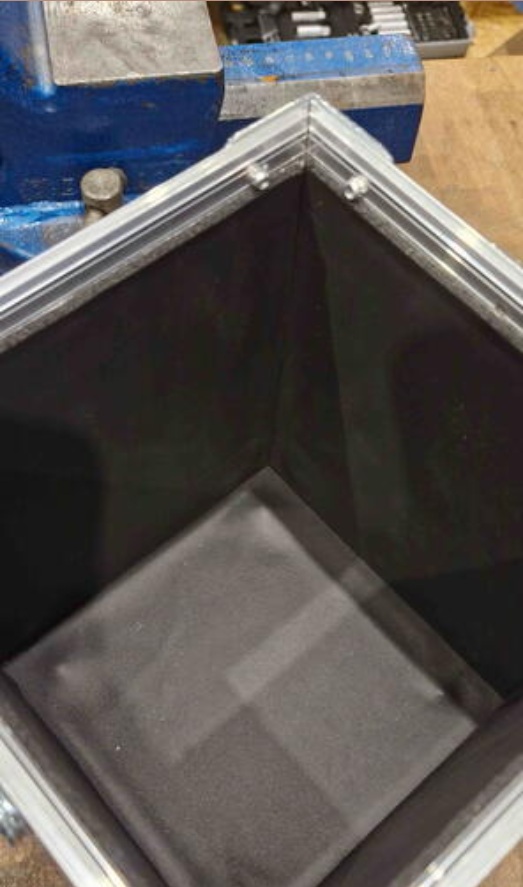

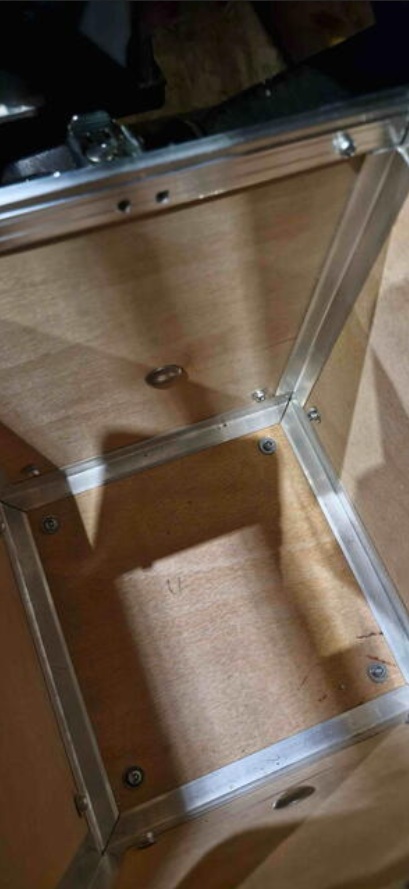

"Perhaps you've also wished for a better use for the battery holder that remains unused when using only a single 12V battery. I searched the internet for a while to see what was available, but couldn't find anything suitable, so I came up with my own solution. -- I got some plywood and the necessary parts for building a case and got to work. I then painted the box in my interior color and insulated the inside. The lid stays securely in place thanks to the latches. I screwed it into the existing holes for the battery mounting. Finally, I used my old MG badge. -- Maybe this will help or inspire some of you. Here are a few pictures". -- Best regards, Thomas

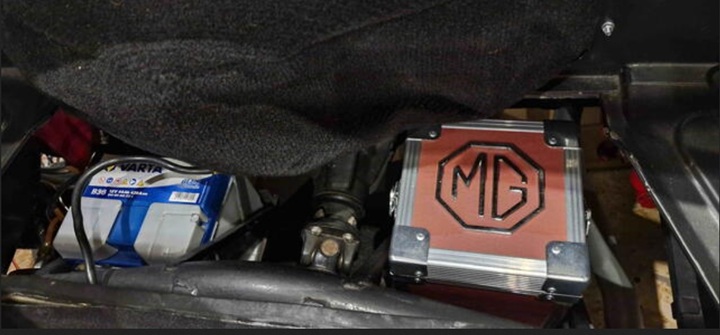

Custom box installed


On Dec 30, 2025, Thomas Schuster from Dresden, Germany wrote:
"As requested, I've attached a parts list, unfortunately only in German and in metric units, but it shouldn't be a problem to translate. Have fun building it! Pictures are welcome. -- Best regards, Thomas

Stückliste für MGA Staubox - (German)
L 175mm x B 175mm x H 230mm
Anzahl   Einheit   Material . . . . .
1 m Adam Hall 6134 Deckelrahmen 37mm Einschub 4mm
1 m Adam Hall 6132 Hybrid Schließprofil Einschub 4mm
2 m Adam Hall 6136 Casemaker 17mm Einschub 4mm
8 Stück Adam Hall 4000 Flache Caseecke 37mm quadratisch
2 Stück Adam Hall 17370 C, Butterfly Verschluß klein ohne Schale
2 Stück Adam Hall 17370 K, Schließhaken für Butterfly Adam Hall 17370 C
4 Stück Adam Hall 40434-L Ecke 19x37mm, passend zu Flachecke Adam Hall 4000
2 Stück Sperrholzplatte 4mm, 161mm x 161mm für Deckel + Boden
4 Stück Sperrholzplatte 4mm, 161mm x 181mm für Seitenwände
32 Stück Nieten 4mm x 8mm
8 Stücks Nieten 3,2mm x 8mm für Butterflybeschlag
8 Stück U-Scheiben d= 4mm für Nieten (in Holz)
1 Stück Holzschutzfarbe
1 Stück Zellkautschuk Selbstklebend 300mm(B) x3mm(D) x1.5m(L) Neopren (o.ä.)

And the English translation below, still in metric units, as meters and millimeters are also part of the English language.

Stock list for MGA Storage Box - (English)
L 175mm x B 175mm x H 230mm
Quantity   Unit   Material . . . . .
1 m Adam Hall 6134 Lid Frame 37mm Insert 4mm
1 m Adam Hall 6132 Hybrid Locking Profile Insert 4mm
2 m Adam Hall 6136 Casemaker 17mm Insert 4mm
8 pieces Adam Hall 4000 Flat Case Corner 37mm square
2 pieces Adam Hall 17370 C, Small Butterfly Latch without Dish
2 pieces Adam Hall 17370 K, Catch Plate for Butterfly Latch Adam Hall 17370 C
4 pieces Adam Hall 40434-L Corner 19x37mm, suitable for Flat Corner Adam Hall 4000
2 pieces Plywood panel 4mm, 161mm x 161mm for lid + base
4 pieces Plywood panel 4mm, 161mm x 181mm for side panels
32 pieces Rivets 4mm x 8mm
8 pieces Rivets 3.2mm x 8mm for butterfly latch
8 pieces Washers d= 4mm for rivets (in wood)
1 piece Wood preservative paint
1 piece Self-adhesive cellular rubber 300mm(W) x 3mm(D) x 1.5m(L) Neoprene (or similar)
