COLLISION REPAIR Estimator Guide for MGA -- BD-100A4
PAGE A4
M G A |
|
5-61
1956 - TO DATE |
* ARE FACTORY SUGGESTED ALLOWANCES
OTHER GLENN MITCHELL ESTIMATED

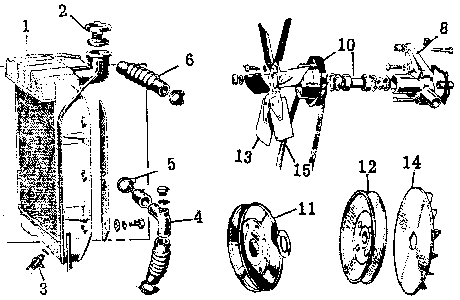

COOLING & ENGINE
| | TIME | PRICE |
| 1 RADIATOR w/cp exc. | * .7 | 55.08 |
 PARTS PECULIAR TO TWIN CAM CAR | | |
| Radiator | * .9 | 56.46 |
| Tank, rad. header | .3 | 15.34 |
| Bracket, header tank | | 1.50 |
| Seal, rubber | | 3.75 |
| Hose, upper | * .3 | 1.85 |
| lower | .5 | 1.07 |
| Pipe, water inlet to pump | | 7.24 |
| Elbow, water inlet to pump | | 2.82 |
| Pipe, pump to elbow | | 2.10 |
| hose | | .50 |
| Pipe bypass, thermostat | | 1.67 |
| housing to pump | | 1.11 |
| 2 Cap | | 1.74 |
| 3 Drain tap | .2 | .75 |
| 4 Pipe, to water pump | .4 | 1.55 |
| 5 Hose, to water pump | * .4 | .61 |
| 6 upper | * .3 | 2.00 |
| lower | * .4 | 2.00 |
| WATER PUMP W/HUB | * 1.3 | 20.47 |
| used on twin cam car | * 1.3 | 76.41 |
| 8 Body, exc. | * 2.0 | 5.00 |
| use on twin cam car | * 2.0 | 14.21 |
| 10 PULLEY, water pump | .6 | 2.35 |
| 11 crankshaft exc. | 1.0 | 5.87 |
| use on twin cam car | 1.3 | 6.40 |
| 12 generator exc. | .5 | 2.57 |
| use on twin cam car | .5 | 4.39 |
| HUB, water pump pulley | | 3.45 |
| 13 FAN, radiator | * .5 | 3.50 |
| 14 generator | .5 | .68 |
| 15 BELT, radiator exc. | * .3 | 1.45 |
| use on twin cam car | * .3 | 1.36 |

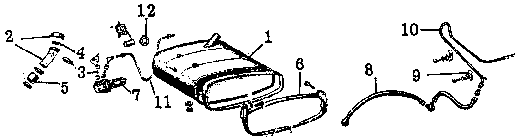

FUEL
| | TIME | PRICE |
| 1 TANK | * .8 | 35.81 |
| 2 Filler extension, tank | * .2 | 5.87 |
| 3 seal | | .25 |
| 4 Ferrule - rubber, filler | | .49 |
| 5 Hose, filler | | 1.10 |
| 6 Strap, mtg. | | 4.89 |
| |
| 7 PUMP, exc. | * .5 | 20.17 |
| use on twin cam car | * .5 | 21.89 |
| 8 Pipe, flex between carb. | * .2 | 2.42 |
| 9 main to carb. | * .2 | 2.29 |
| 10 Pipe assy, pump to carb. exc. | * 1.3 | 4.29 |
| use on twin cam car | * 1.3 | 3.39 |
| 11 tank to pump | * .3 | 2.53 |
| 12 GAUGE, in tank | | 14.45 |
| CARBURETOR, fr. or rr. exc. | * .8 | 45.30 |
| use on twin cam car | | |
| Air cleaner, carb. fr. exc. | | 9.56 |
| use on twin cam car | | 13.79 |
| rr. | | 10.91 |

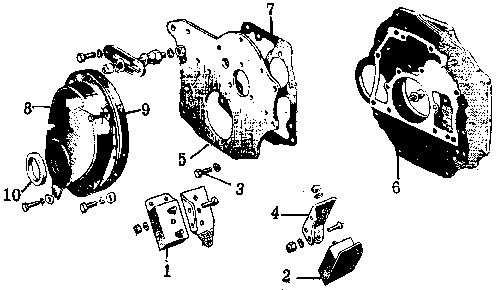

ENGINE SUPPORTS
| | | TIME | PRICE |
| 1 RUBBER BLOCK, fr. mtg. exc. | O/H | * 1.3 | 2.79 |
| use on twin cam car | | * 1.3 | 2.99 |
| 2 rr. mtg. on gearbox | | * 3.5 | 4.05 |
| 3 Bolt, rr. mtg. | | .36 |
| 4 Bracket, fr. mtg. | | .90 |
| 5 Plate, fr. eng. mtg. exc. | 4.0 | 17.13 |
| use on twin cam car | | 37.45 |
| 6 rr. eng. mtg. exc. | | 22.97 |
| use on twin cam car | | 26.41 |
| 7 gasket, fr. or rr. | | .18 |
| |
| 8 COVER, fr. eng. exc. | * 2.5 | 2.50 |
| use on twin cam car | | 54.93 |
| 9 Gasket, cover exc. | | .34 |
| use on twin cam car | | .21 |
| 10 Felt ring, cover exc. | | .25 |
| use on twin cam car | | 1.89 |
| OIL PAN | * .9 | 8.64 |
| Gasket, pan | | .40 |

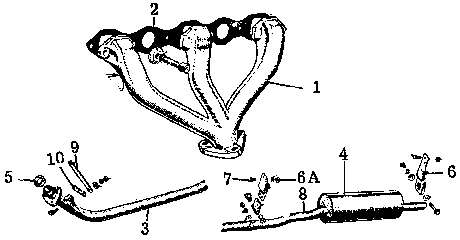

EXHAUST
| | TIME | PRICE |
| 1 MANIFOLD, exhaust exc. | * .8 | 23.36 |
| use on twin cam car | | |
| Nos. 1 & 4 cyl. | | 23.87 |
| Nos. 2 & 3 cyl. | | 28.46 |
| 2 Gasket, manifold to head exc. | | .54 |
| use on twin cam car | | .50 |
| 3 EXHAUST PIPE ASSY, w/muffler exc. | * .8 | 28.46 |
| use on twin cam car | | |
| front pipe assy. | | 27.97 |
| intermediate pipe w.muffler | | 26.47 |
| 4 MUFFLER | 1.4 | 12.88 |
| 5 Packing, exhaust pipe | | .49 |
| 6 Mounting, rr. exhaust | .3 | 2.31 |
| 6A intermediate | .3 | 1.57 |
| 7 Bush, intermediate mtg. | | .62 |
| 8 Housing, intermediate mtg. | | .47 |
| 9 Strap, fr. mtg. upper | | .34 |
| 10 lower | | .29 |
|
GLENN MITCHELL COLLISION ESTIMATOR INC.
|
|
