COLLISION REPAIR Estimator Guide for MGA -- BD-100A7

3-61
1956 - TO DATE
PAGE A7
M G A
* ARE FACTORY SUGGESTED ALLOWANCES
OTHER GLENN MITCHELL ESTIMATED

body sill and pillar assembly
INNER PANEL & REINF, TIME IS W/OUTER
PANEL; & BOLTED ON PARTS REMOVED.

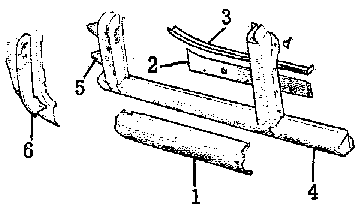

ROCKERS & PILLARS
 TIMEPRICE
  1   ROCKER PANEL, outer5.05.56
  2 inner1.02.00
  3 sealing, upper1.02.75
  4   ROCKER REINFORCEMENT & PILLAR ASSY.8.023.97
  5   LOCK PILLAR, COUPE.2.56.29
  6   Facing panel, lock pillar exc.2.54.17
Coupe3.06.06
Extensions, hinge pillar1.54.00

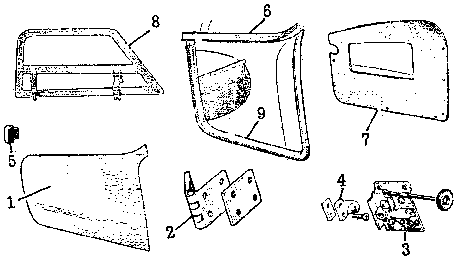

roadster door
DOOR, ROADSTER
 TIMEPRICE
  1   DOOR (roadster)3.068.66
  2   Hinge* 1.52.82
  3   Lock*   .85.46
  4   Striker, lock*   .31.82
  5   Buffer.2.93
  6   TRIM ROLL, door top exc.*   .413.98
1600 exc.13.79
black w/ red piping13.79
  7 Panel, door inside*   .36.53
  8   SIDE CURTAIN ASSY exc.28.27
1600 grey39.78
beige or blue33.60
frame, flap3.57
panel, flap2.46
closing device4.74
Stowage panel behind seats19.37
  9   WEATHERSTRIP, red, green, grey, black*   .56.37
Chrome cap, w/strip.82

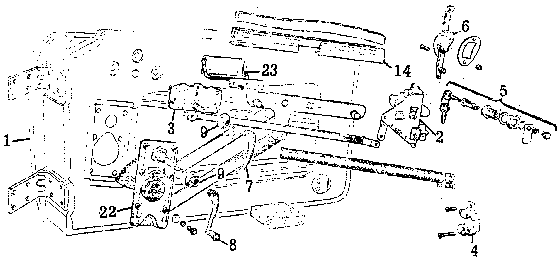

Coupe door inner parts

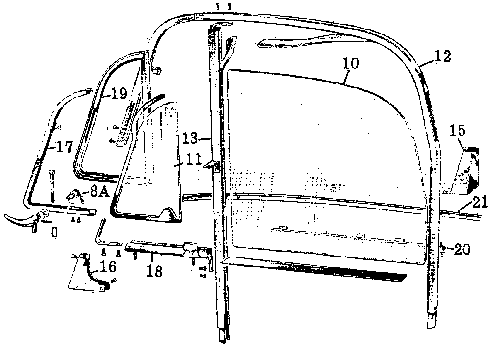

Coupe door window parts
DOOR, COUPE
 TIMEPRICE
  1   DOOR (Coupe)4.078.24
  2   LOCK1.310.90
  3 remote control1.03.52
  4   Striker, lock.31.25
  5   Cylinder & key, lock.54.03
  6   HANDLE, o/s.25.20
  7 i/s.21.14
  8 window regulator.21.86
  8A vent window.21.33
  9   Escutcheon, i/s handle.48

FRAME & VENT ASSY, w/dr. glass & channel1.561.75
10   Glass, door1.59.47
11 vent.51.25
12   Channel, window surround1.518.75
13 division bar1.57.81
14 regulator1.21
15   Blending piece, channel rear2.42
16 front1.57
VENT ASSY, w/frame & glass1.510.49
17   Frame, vent1.55.84
18   Channel vent lower
19   WEATHERSTRIP, vent1.71
20 window frame.68
dr. sealing, red, green, grey., black1.011.82
21   MOULDING, at dr. window slot5.00
22   REGULATOR, window8.35
23   Pull, inside1.32
GLENN MITCHELL COLLISION ESTIMATOR INC.
