HORN MOUNTING - ET-109A

Windtone horn Windtone horn

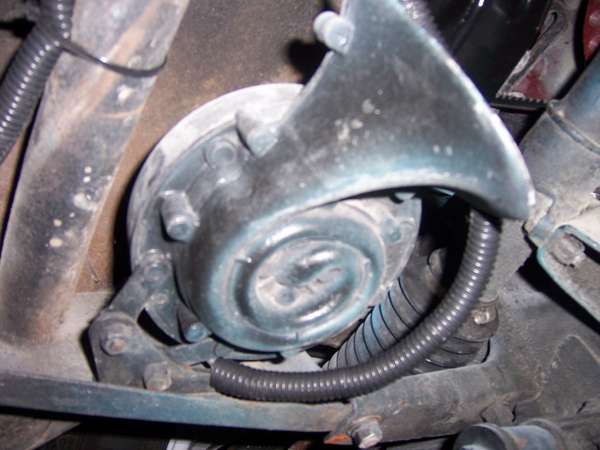

Above left, horn mounting as original. Above right, with added protective tube on the wires. Below left and right, with aftermarket anti-sway bar mounted underneath the front frame extension.
Windtone horn Windtone horn
When I installed my aftermarket sway bar below the frame, I turned the horns around to point forward so they would not hammer on the sway bar.
horn bracket horn bracket
The brackets are right and left handed. The bend is not 90 degrees, but matches the angle on the front frame extension. Note also the coiled part of the horn belongs on the bottom so it will not retain water.
dual windtone horns installed
